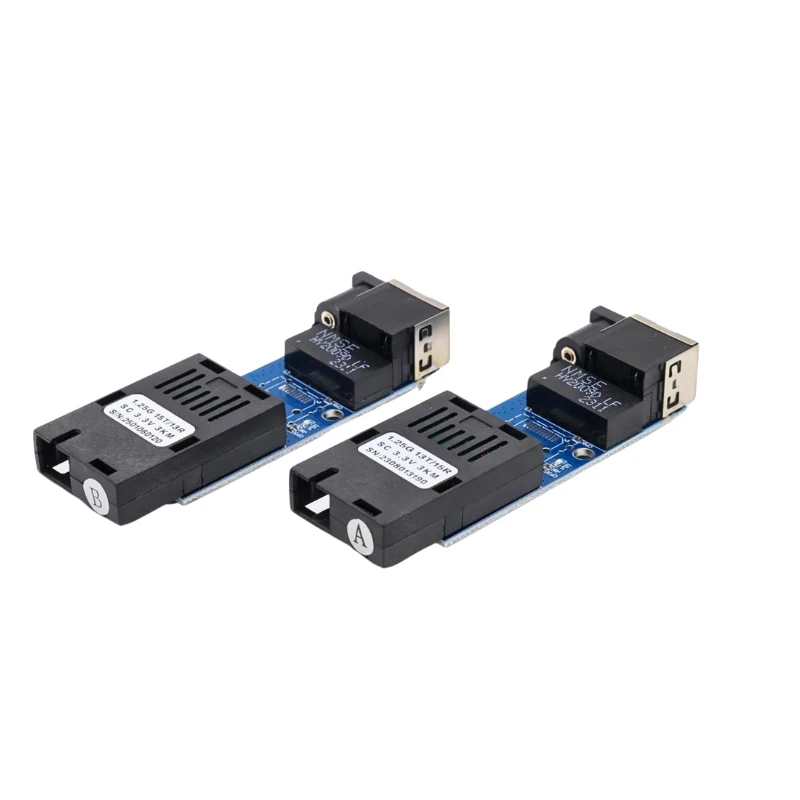

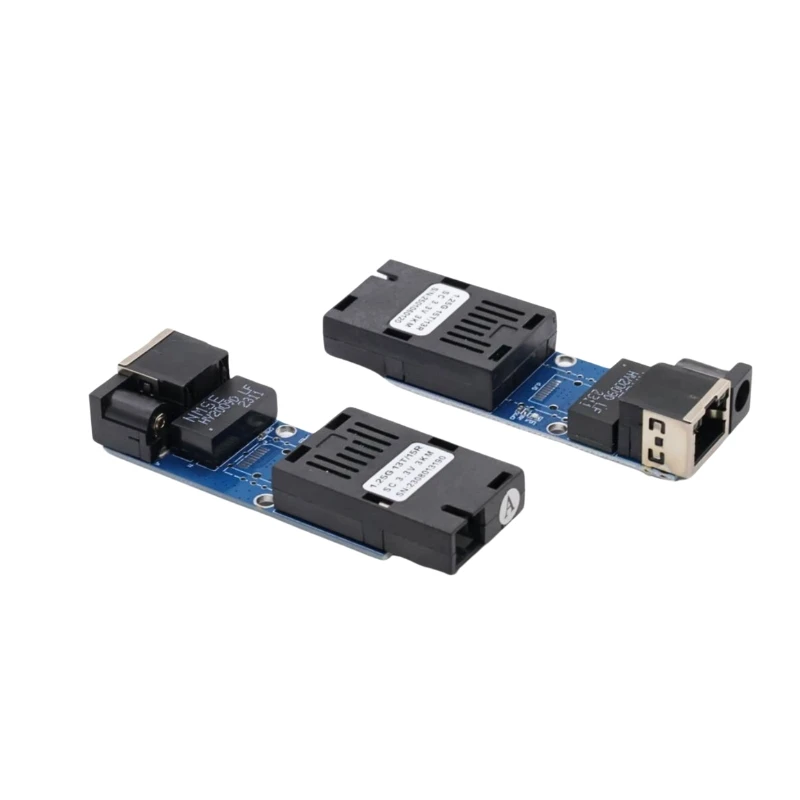

Super Mini FTTH CCTV 1 Pair Gigabit Fiber Optical Media Converter 10/100/1000Mbps SingleMode Single Fiber PCBA Board
- Overview
- Recommended Products
Company Profile
Product Description

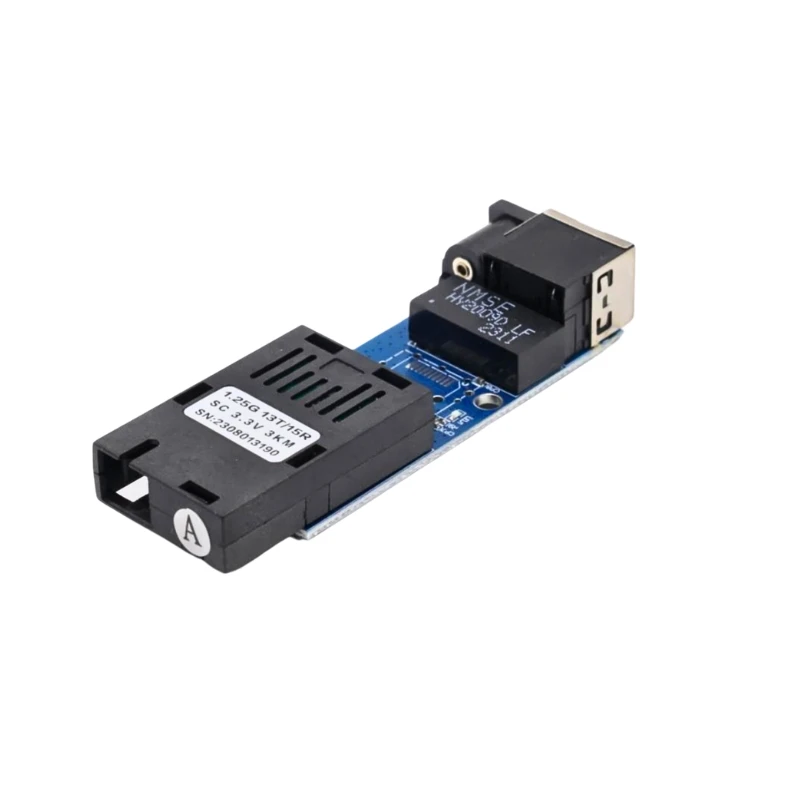

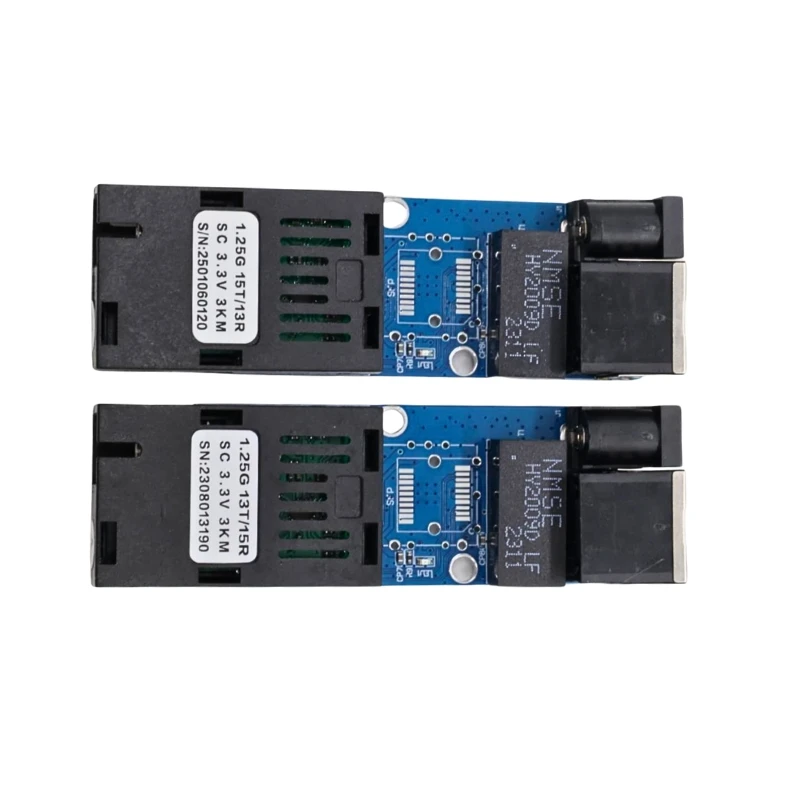

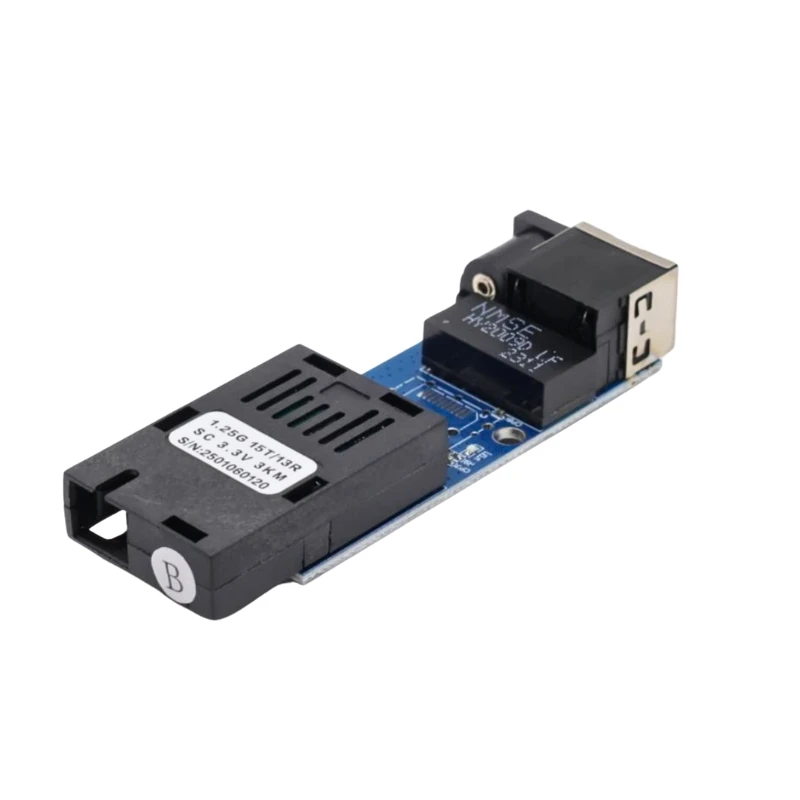

This compact Gigabit 1 Fiber 1 RJ45 (1*SC+1RJ45) media converter PCB is designed for commercial applications requiring fiber-to-RJ45 conversion with 20km transmission distance. The board supports 5-12V DC input and features a ultra-compact design (9×3×1.5cm) for space-constrained installations.
Product Feature
✔ Long diatance Support
* 1× 1000BASE-LX SC fiber interface (3KM/20km single-mode fiber)
* 1× 10/100/1000Base-T RJ45 (Auto-MDI/MDIX, Auto-negotiation)
✔ Compact & Low-Power Design
* PCB dimensions: 90mm × 30mm × 15mm
* Input voltage: 5-12V DC
* Power consumption: ≤3W (typical)
✔ Commercial-Grade Reliability
* Operating temperature: 0°C to +60°C
* Supports store-and-forward switching
* 1× 1000BASE-LX SC fiber interface (3KM/20km single-mode fiber)
* 1× 10/100/1000Base-T RJ45 (Auto-MDI/MDIX, Auto-negotiation)
✔ Compact & Low-Power Design
* PCB dimensions: 90mm × 30mm × 15mm
* Input voltage: 5-12V DC
* Power consumption: ≤3W (typical)
✔ Commercial-Grade Reliability
* Operating temperature: 0°C to +60°C
* Supports store-and-forward switching
Specification
Parameter |
Fiber Port |
RJ45 Port |
Standard |
IEEE 802.3z (1000BASE-LX) |
IEEE 802.3ab (1000BASE-T) |
Connector |
SC/FC/ST |
RJ45 |
Transmission |
3KM/20KM |
100m |
Data Rate |
1Gbps full-duplex |
10/100/1000M auto-sensing |
Power&Environmental
Input Voltage:5-12V DC (wide range)
Power Consumption:≤3W (no fiber module)
Operating Temperature:0°C to +60°C
Storage Temperature:-20°C to +85°C
Storage Temperature:-20°C to +85°C
Humidity:10% to 90% (non-condensing)
